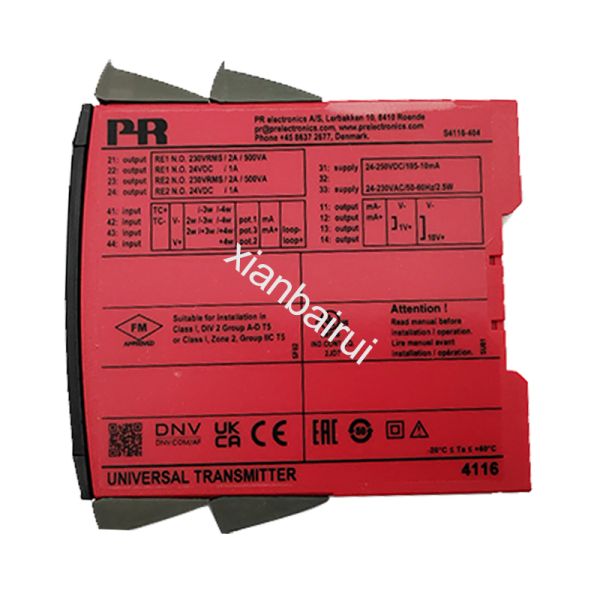

PR Electronics 4116 Multi-purpose signal Transmitter Analog Output 2 Relay Output Temperature Pressure Flow Liquid Level

Name: PR Electronics 4116 Multipurpose signal Transmitter Analog Output 2 Relay Output Temperature Pressure Flow Liquid Level
Brand: PR electronics
Price: 1 USD

Wholesale PR Electronics 4116 Multi-purpose signal Transmitter Analog Output 2 Relay Output Temperature Pressure Flow Liquid Level from china suppliers

Model Number : 4116

Place of Origin : Shaanxi, China

Brand Name : PR electronics

MOQ : 5 pieces

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Series : 4000

Features : A signal transmitter

Mounting Type : Open mounting

Description : Signal transmission, Multi-purpose signal transmitter

Manufacturing Date Code : 2025

Type : Signal transmission

Usage : Signal conversion, signal protection

Theory : Multi-purpose signal transmitter

Output : 0-20mA or 4-20mA or 0-10v

Connector : terminal

Power supply : Ac or DC

Contact Now

PR Electronics 4116 Multi-purpose signal Transmitter Analog Output 2 Relay Output Temperature Pressure Flow Liquid Level

Products Description

Model number	4116
place of origin.	Denmark
brand	PR electronics
Feature	A signal transmitter
Input:
mA, measuring range/minimum range	0... 23 mA / 16 mA
V, measuring range/minimum range	0... 12 VDC / 0.8 V
RTD, measuring range/minimum range	- 200... +850°C / -
Lin.R, measuring range/minimum range	0... 10000 Ω / -
potentiometer	10 W... 100 kW
Sensor connections, cables	RTD 2-wire, 3-wire, 4-wire
TC type	BEJKLNRSTUW3W5Lr
Cold-end compensation	Internal/external
Reference voltage / 2-wire power supply	- / 16 VDC
Output:
mA, signal range/minimum range	0... 23 mA / 16 mA
Load (@ current output)	≤ 800 W
V, signal range/minimum range	0... 10 VDC / 0.8 VDC
Load (@ voltage output)
relay	2 x SPST, AC: 500 VA
Technical specifications:
Ambient temperature	- 20... +60°C
Supply voltage, general purpose, AC/DC	21.6... 253 V/19.2... 300 V
Maximum power consumption	2.5W
Isolation voltage, test/work	2.3 kVAC / 250 VAC
Response time	< 400 ms
Signal dynamic range, input/output	24 bit / 16 bit
precision	< Measuring range of ±0.1%
Temperature coefficient	< ±0.01% of the range / °C
NAMUR	NE21, NE43
passage	1
Parameter setting mode	Equipment in the 4500 series
Structural dimension	109 x 23,5 x 104 mm
Application industry	Whole industry
